Descrição
Compatibilidade:
ISO 2Din Universal, também dá em alguns carros NISSAN.
Características:
- Android 13.0 OS, Octa-Core, 8*A53 64-bit 2.0GHz CPU.
- 4GB RAM & 64GB ROM, 1 Card/3 USBs up to 4*256GB extended storage.
- High-Speed Processing: Benchmark-Score does go above 110,000.
- DSP Amplifier System: 32-Band EQ Selections, Hi-Fi Music Enjoyment.
- Wireless Apple CarPlay and Wireless & Wired Android Auto.
- Latest Bluetooth 5.0: Hands-free Calls, BT-Music, Phone Book Synchronise.
- GPS Sat. Navigation: Support offline GPS Navigation, GPS function is ready to use.
- Dual Band WiFi Module: Support Both 2.4GHz and 5GHz Band.
- 4G Internet: Support 99% of carriers in the world, support micro SIM card.
- Support DAB+, DVB-T/T2, TPMS, OBD2, DVR, AHD-Camera, etc. extended functions.
- Steering Wheel Control: easier and safer to control.
- Split-Screen: Run Two APPS Side by Side.
- RGB-Colors Panel Lights.
Nota importante:
- Para carros Nisssan pode necessitar de um cabo adaptador próprio.
Características gerais:
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 7 inch
- Front panel Size without frame: 170mm(W)*96mm(H)
- Front panel Size with frame: 178mm(W)*101mm(H)
- Install Size: 2Din Size, 178mm*150mm*100mm
- Package Size: 310mm*210mm*140mm
- Shipping Weight: 2kg
Sistema:
- Operation System: Google Android 13.0
- CPU: MT8667 1.5GHz*4+2.0GHz*4 64-bit 12nm Cortex 8*A53
- RAM: 4GB
- Internal Memory: 64GB
- Extended Card/USB: Support USB Stick / Card up to 256GB
Display:
- Screen Type: Multi-touch IPS screen
- Multi-windows view: Yes, support Split Screen, you can run two apps side by side
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Wallpapers: built-in 1 live wallpapers, 23 standard wallpapers, support User’s wallpaper
- Change Apps-Icon Position: Yes
Internet:
- WiFi Internet: Dual Band WiFi, support 2.4GHz and 5.0GHz Dual Band WiFi networking, support WiFi Hotspot.
- 3G/4G Internet: Built-in 4G Module, Supported 4G Bands: B1, B2, B3, B7, B8, B12, B20, B34, B38, B39, B40, B41.
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Google Maps Navigating
- Online Games: Yes, online play or you can download it from google play store
- Online Communication: keep connected through WhatsApp, WeChat, Twitter, Facebook, Gtalk, Gmail…
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT
Audio:
- Format: MP3, WMA, MP2, OGG, AAC, MA4, FLAC, APE, WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: TDA7388, Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB
Video:
- Format: Support AVI (H.264, DIVX, XVID), rm, rmvb, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG etc. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
- Video Output: need to use the USB-RCA-Converter
GPS:
- Operation System: Android 13.0
- Support Maps: IGO, Sygic, Waze maps for Android 13.0
- Support offline navigation: Yes, ready to use.
- Dual Zone: Yes, navigating while music playing
- Online Navi: Yes, support online navigating such as Google maps
Bluetooth:
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search for contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Built-in Microphone: Yes, on the front panel
- External Microphone Jack: Yes, on the back
Rádio:
- Main Chips: TDA7388
- AM Frequency Range: 522-1620KHz
- AM Increment: 9KHz(EU)/10KHz(US)
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- RDS: On/Off
- Preset Stations: 30(FM 3*6, AM 2*6)
USB:
- Position: 3 USB Ports On the Back
- Function: Can be connected with U-Disc, 3G/4G Dongle, CarPlay Dongle, TPMS-Device, DVR-Camera, DAB-Receiver, Smartphone etc.
- Capacity: 256GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P
TF:
- Position: On the front panel
- Function: Can be used as Multimedia card or GPS card slot.
- Capacity: 256GB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P
Android Auto:
- Built-in Android Auto: Yes, just connect your smartphone to this unit with USB or Bluetooth to use this function
- Connection Port: USB or Bluetooth
- Support Device: Android Smartphone with Android 5.0 and above
- Support Wireless connecting: Yes
- Control the connected Android Phone on head unit: Yes
CarPlay:
- Built-in CarPlay: Yes, just connect your smartphone to this unit with Bluetooth to use this function
- Connection Port: Bluetooth
- Support Device: iPhone iOS 7.1 and above
- Support Wireless connecting: Yes
- Unit’s Screen Control Phone: No, but you can download CarPlay supported function APK to use and control
Car DVR:
- Built-in DVR App: Yes, just connect a USB DVR Camera to use this function
- Connection Port: USB
- Storing Position: TF Card in Camera
- Touch Control DVR-Camera on unit: Yes
- DVR-Camera incl.: No, you can contact us to buy it together
TPMS-IN:
- Built-in TPMS App: Yes, just connect a TPMS Module to use this function
- Connection Port: USB
- Power Supply to TPMS Module directly: Yes
- Touch Control TPMS Module on unit: Yes
- TPMS Module incl.: No, you can contact us to buy it together
DAB(+)-IN:
- Built-in DAB Player App: Yes, just connect a DAB-Receiver to use this function
- Connection Port: USB
- Power Supply to DAB-Receiver directly: Yes
- Touch Control DAB-Receiver on unit: Yes
- DAB-Receiver incl.: No, you can contact us to buy it together
CAM-IN:
- Support CVBS Camera: Yes
- Support AHD Camera: Yes
- Support AHD Camera Video Formats: 720P-25FPS/720P-30FPS/1080P-25FPS/1080P-30FPS
- Connection Port: RCA
- Reverse Control: Yes
- Reversing Camera incl.: No, you can contact us to buy it together
AV-IN:
- Built-in AV-IN App: Yes, Support external Audio & Video Input
- Connection Port: RCA
- Support DTV-IN: Yes, you can connect with a Digital TV Box (DVB-T/T2, ATSC, ISDB) to use
Notas adicionais:
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening to music
- Photo Slideshow: Support JPEG, BMP, PNG, GIF format and 4096*4096 Pixels, played by Revolve or Powerpoint.
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- DSP Amplifier System: 32-Band EQ Selections, Hi-Fi Music Enjoyment.
- Support steering wheel control
- Support change panel light colors, many RGB-colors can choose
- Support Android Multimedia Player, can play Music/Video/Photo from local Disc or USB
Input:
- AUX Video In: One
- DTV Video In: One
- Rear-View Camera In: One
- Front-View Camera In： One
- External Microphone In: One
- AUX Audio In: R/L
- TPMS Module In: One
- DAB-Receiver In: One
- Car DVR In: One
Output:
- Video Out: Yes, need to buy the USB-RCA-Converter from us to share screen display with your passenger
- Audio Out: FR/FL/RR/RL
- Surround Stereo Out: 4*45w
- Subwoofer Out: One

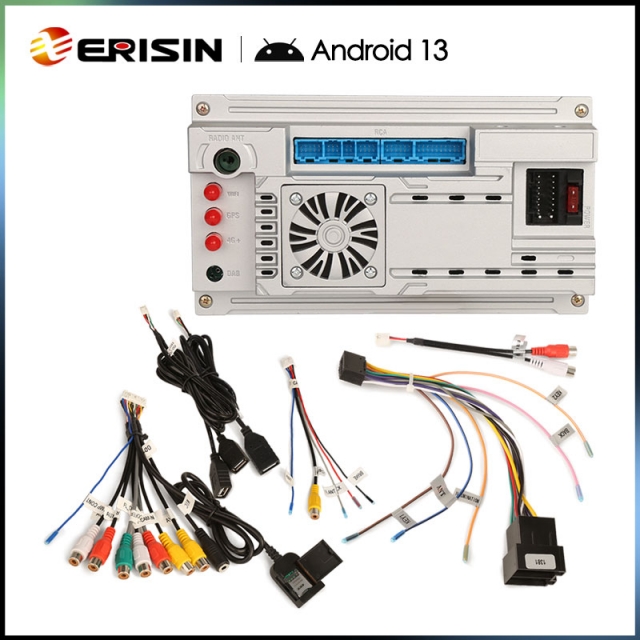

Accessories:
- 1*User’s Manual in English
- 1*RCA AV Connecting Cable
- 1*Camera Input and Control Cable
- 1*Power Cable with ISO Connector
- 1*RCA Audio Output Cable
- 2*Rear USB Adapter Cables
- 1*WiFi Antenna
- 1*External Microphone
- 1*4G Antenna
- 1*GPS Antenna
- 1*Install Frame and Fittings
